Products Busbar Trunking System
DCC Low voltage busduct
DCC series low-voltage intensive busduct is a new economic distribution busbuct product developed by Dingsheng group on the basis of ccx3 series busduct. The series busduct has the advantages of ccx3 series busduct, and further improves the heat dissipation performance. At the same time, according to the skin effect of current, the width of busbar is increased, and the thickness of busbar is reduced. Compared with ccx3 series busduct, the cost of busduct with the same current grade is reduced by about 10%. Customers can choose according to the actual situation.
Introduction
Technical parameter
Certification certificate
Product video
Message
DCC Low voltage busduct
1、 Overview
DCC series low-voltage intensive busduct is a new economic distribution busbuct product developed by Dingsheng group on the basis of ccx3 series busduct. The series busduct has the advantages of ccx3 series busduct, and further improves the heat dissipation performance. At the same time, according to the skin effect of current, the width of busbar is increased, and the thickness of busbar is reduced. Compared with ccx3 series busduct, the cost of busduct with the same current grade is reduced by about 10%. Customers can choose according to the actual situation.

Product Name: air type bus duct
Model: DCC
Rated voltage: 1000V
Rated insulation voltage: 1000V
Rated current: 250A ~ 4000A
Rated frequency: 50Hz, 60Hz
Product certificate: CCC and etc.
Materials: aluminum alloy shell, T1 / T2 copper conductor
Color: according to customer requirements
Executive Standards: GB 7251.1-2013, GB 7251.6-2015, JB / T 9662-2011

20190617104756_11109

2、 Product model
Wire system: 41-four wire system / 51-five wire system (PE for shell) / 52-five wire system
Protection grade: 54-ip54 / 65-ip65 / 66-ip66
Current rating:IP54-66
3、 Use environment
Altitude: ≤ 2000 m
Ambient temperature: - 25 ℃～ 40 ℃
Indoor relative humidity: daily average ≤ 95%, monthly average ≤ 90%
Earthquake resistance: ground horizontal acceleration 0.4g; vertical acceleration 0.4g at the same time.
No explosion, serious pollution, chemical corrosion and other harsh environment.

20190617104544_53131

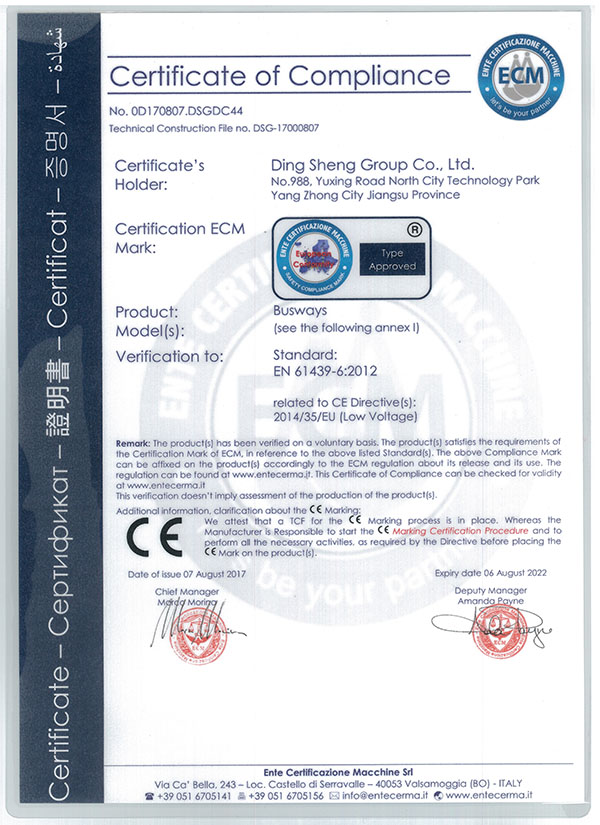

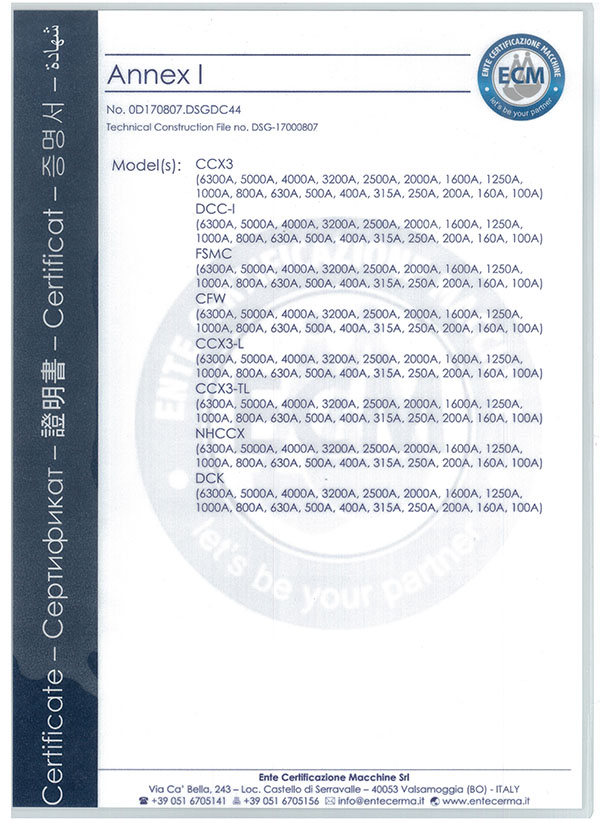

P13-CE證書-1P14-CE證書-2
